Frequently Asked Questions

PVC raw materail is broken in sprue during test TP filter mold.

Instruction: remove and smooth sprue,
Reason: because PVC easy cause to mold rust, which is caused to this question. so When we restart to use molds after a long time. We must check if there are rust in Sprue.

Pin doesn't get out raw material tree during injection.

Instruction: elongate the ejection pin distance.

Sprue is very hard to get out

Instruction: Reduce diameter 0.02~0.05mm.

Cavity gate is broken when Nebulizer cup is produced by PS.

Instruction:
1) Choose Transparent ABS.
2) Increase outside size of cavity gate.

A small is closed in the middle of nebulizer cup.

Instruction: Pin of hole is broken, Change the pin.

Funnel of nebulizer is sitcked on cavity.

Instruction: Drill a small pit on the core like the below.

More details

FAQ1

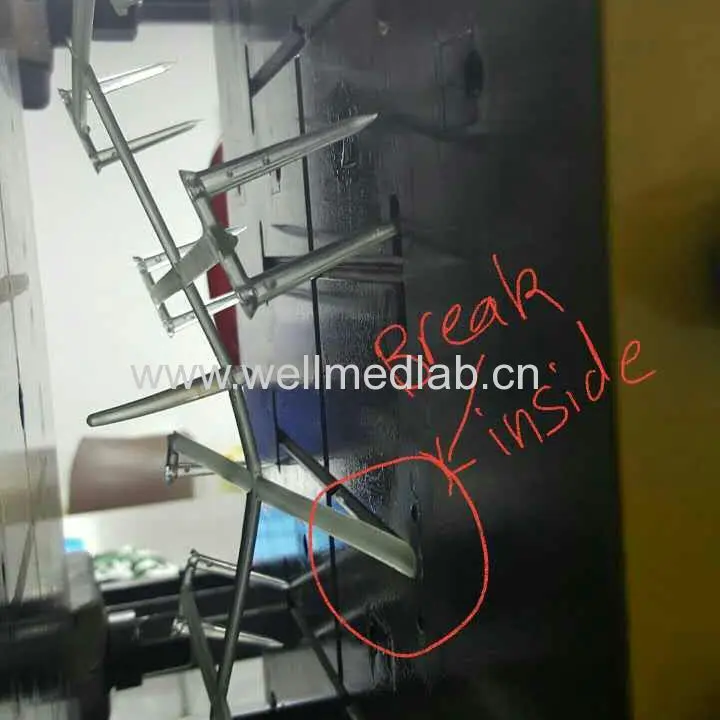

Question: PVC raw materail is broken in sprue during test TP filter mold.
Instruction: remove and smooth sprue,
Reason: because PVC easy cause to mold rust, which is caused to this question. so When we restart to use molds after a long time. We must check if there are rust in Sprue.

FAQ2

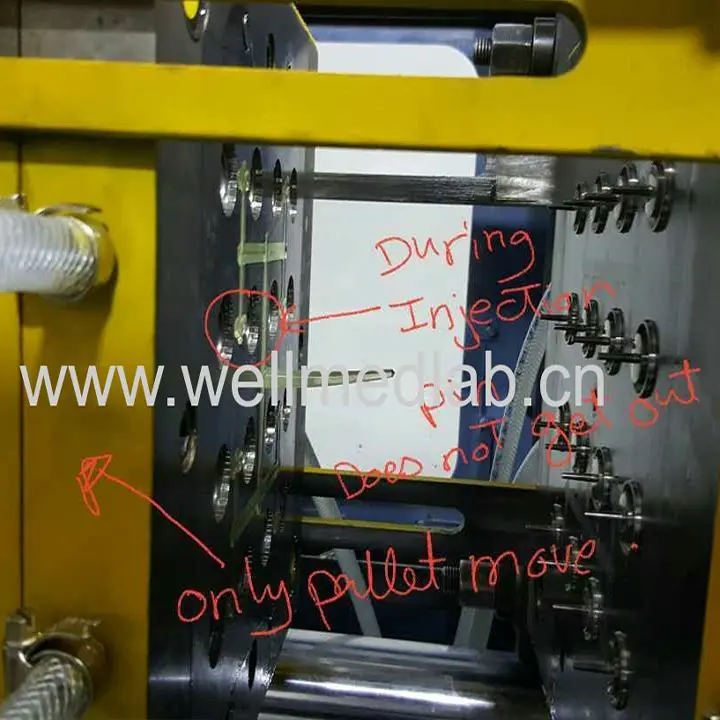

Question: pin doesn’t get out raw material tree during injection.
Instruction: elongate the ejection pin distance.

FAQ3

Instruction: Screw hardly yellow plastic hook on the bottom of molds.

FAQ4

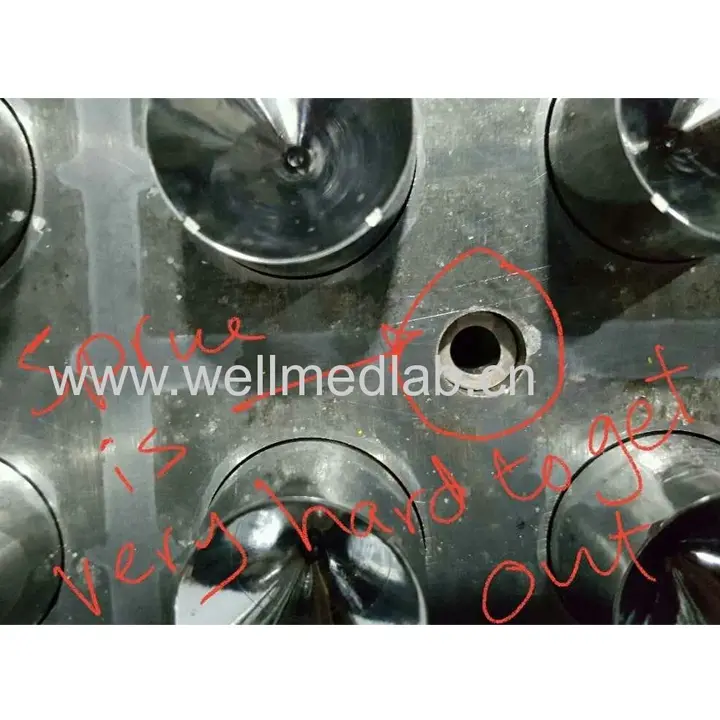

Question: Sprue is very hard to get out
Instruction: Reduce diameter 0.02~0.05mm.

FAQ5

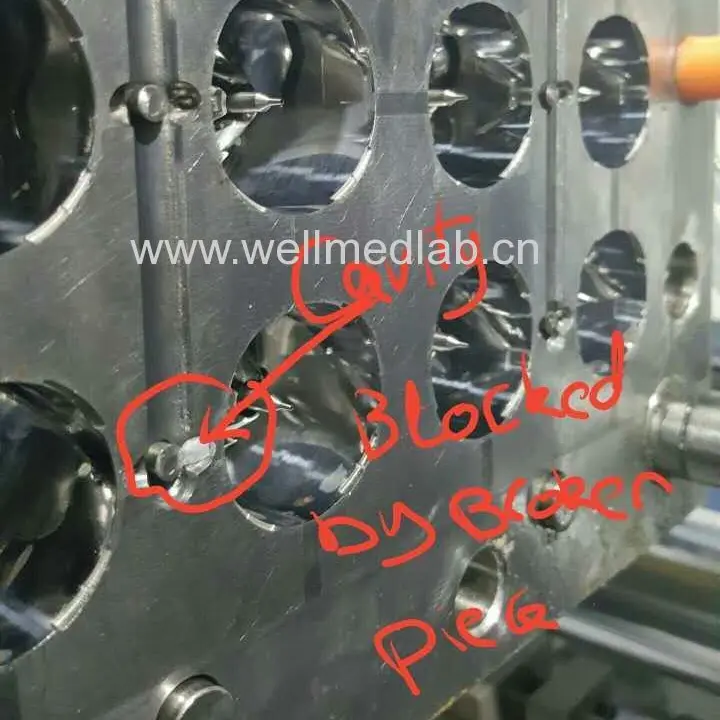

Question: Cavity gate is broken when Nebulizer cup is produced by PS.
Instruction:
1) Choose Transparent ABS.
2) Increase outside size of cavity gate.

FAQ6

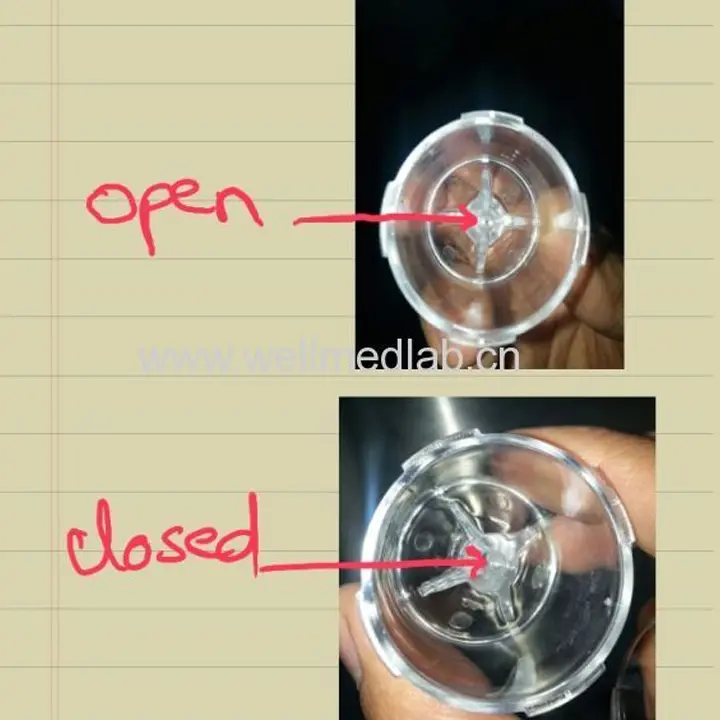

Question: a small is closed in the middle of nebulizer cup.
Instruction: Pin of hole is broken, Change the pin.

FAQ7

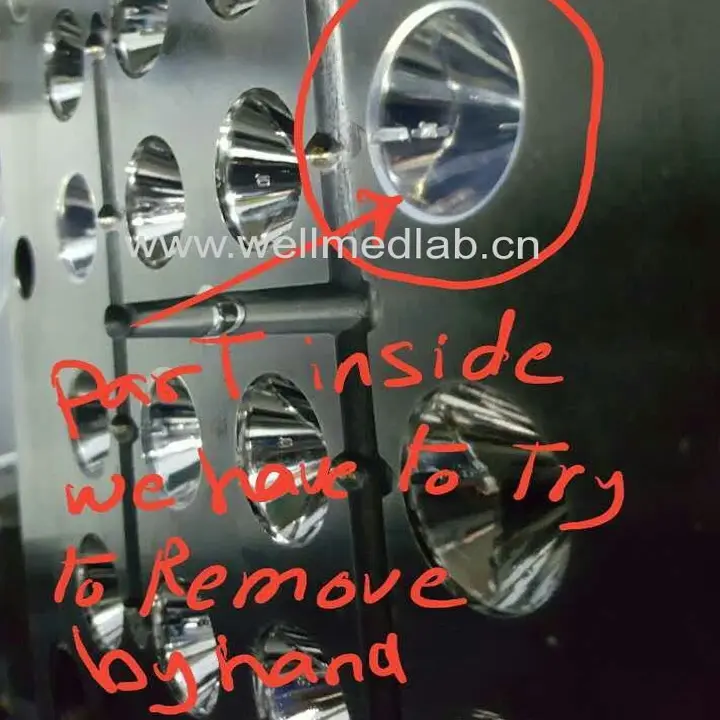

Question: Funnel of nebulizer is sitcked on cavity.
Instruction: Drill a small pit on the core like the below.

FAQ8

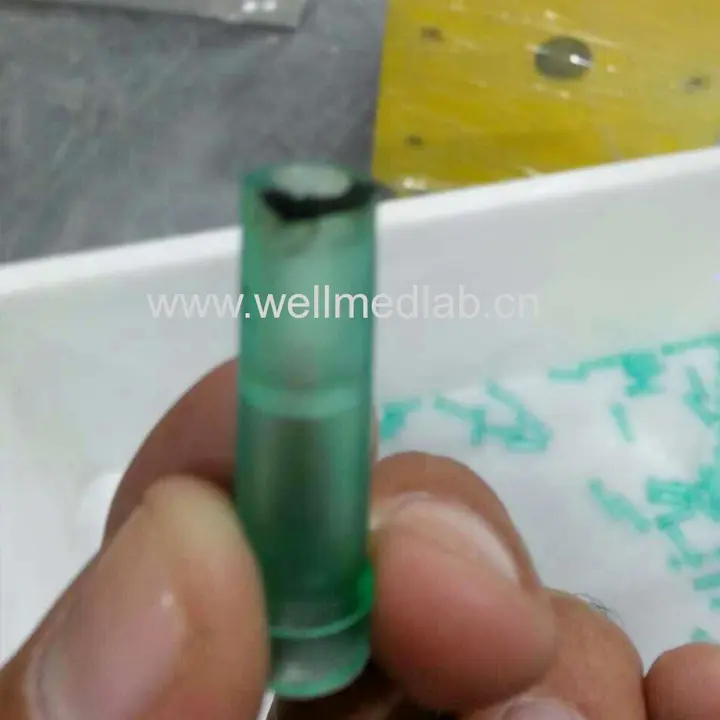

Question: There are burn point on adaptor.
Instruction: Clear flow way.

FAQ9

Question: Yellow hook is cutted a small.
Instruction: Smooth hole according.

FAQ10

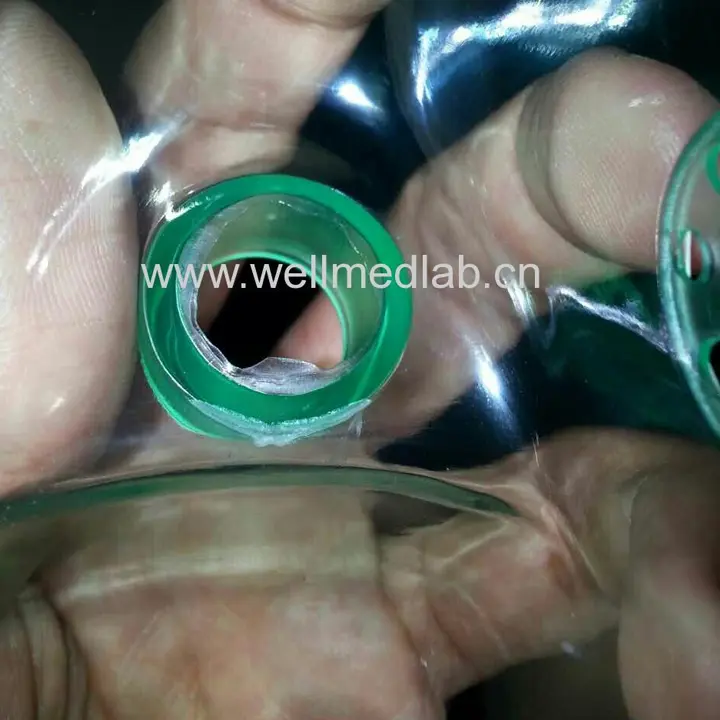

Question: There are flash oxygen mask
Instruction: It is caused because Molds is not closed perfectly. Clear the groove and screw hardly guide pin.

FAQ11

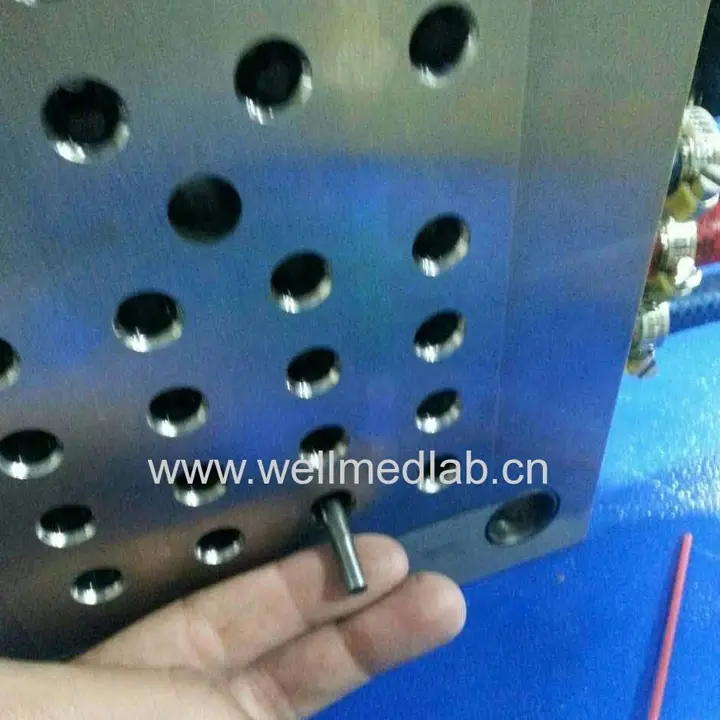

Question: Pin is gotten out.
Instruction: Knock the pin like the below pictures, so that pin is a little distortion an then pin can be fixed.

FAQ12

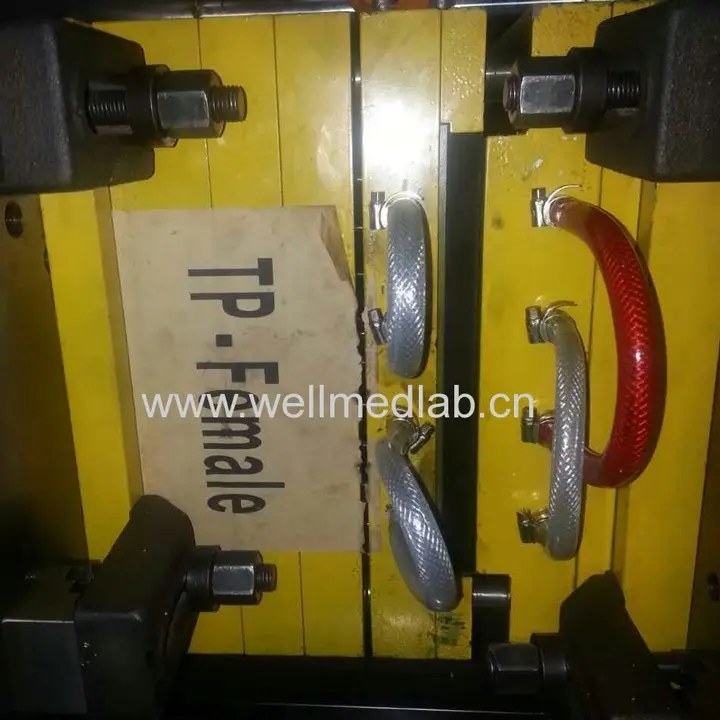

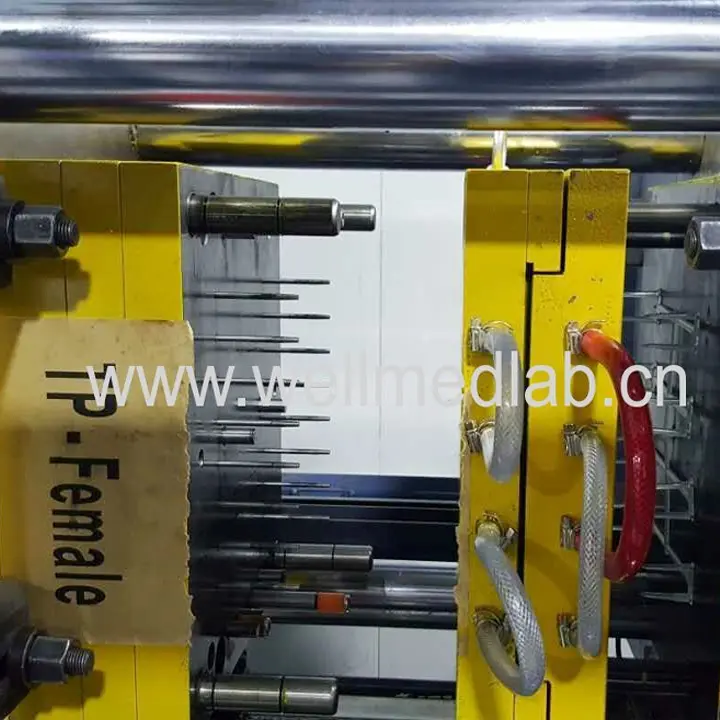

Question: Mould can’t be closed during test TP filter mould
Instruction: improve matching during guid pin and guid hole.

FAQ13

Question: some PVC adaptor is sticked on the cavity.
Instruction:
1. checking if Cooling water is OK
2. sand these cavities directly a small rough by 240S sand paper, which is not effected surface.

FAQ14

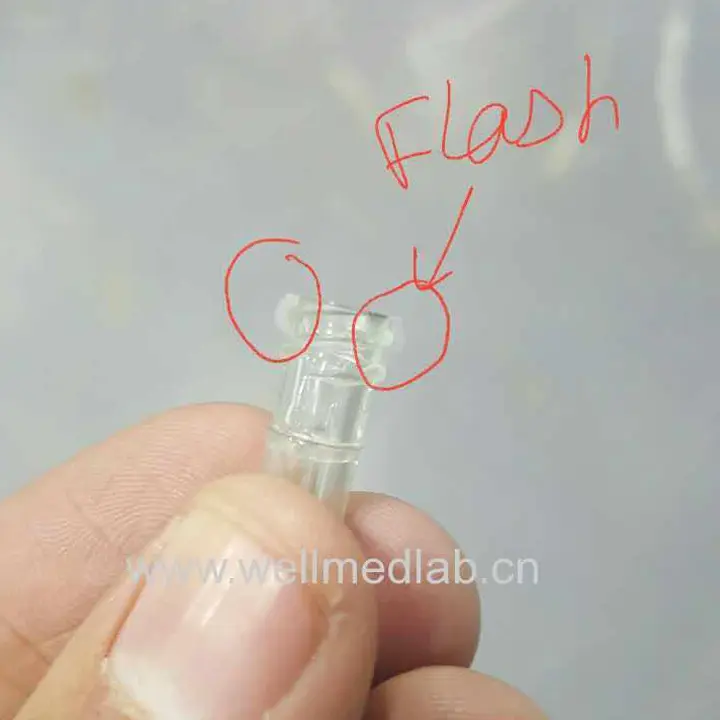

Question. There are some flash.
Instruction: First cover red inkpad on ” A ” of covities. and close mold to check red mark. and then repair ” A ” accordingly.

FAQ16

Question: There are some white dots on nebulizer cup
Insstruction: Maybe when switching cooling water tube. Some water are splashed on nebulizer cup. It cause to some rust on mold. these rust cause to white dots. remove these rust by the below tool.
