| Model | unit | GT2-LS90 | GT2-LS120 | GT2-LS160 | GT2-LS200 | GT2-LS260 | GT2-LS320 | GT2-LS380 |
| International size rating | 900-260 | 1200-350 | 1200-350 | 1600-550 | 2000-725 | 2600-1280 | 3200-1680 | 3800-1980 |

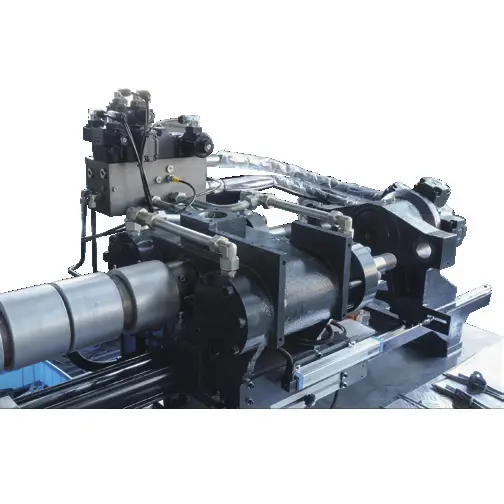

| INJECTION UNITS | ||||||||
| Screw Diameter | mm | 32 35 40 | 35 38 42 | 40 45 50 | 45 50 55 | 55 60 65 | 60 65 70 | 65 70 75 |
| Theoretical shot volume | cc | 125 149 195 | 164 193 236 | 251 318 393 | 350 432 523 | 630 749 879 | 820 962 1116 | 1045 1212 1392 |
| Theoretical Shot weight(PS) | g | 113 136 177 | 149 175 214 | 229 289 357 | 318 393 476 | 573 682 800 | 746 876 1016 | 951 1103 1266 |
| OZ | 4 4.8 6.3 | 5.3 6.2 7.6 | 8.1 10.2 12.6 | 11.2 13.9 16.8 | 20.2 24.1 28.2 | 26.3 30.9 35.8 | 33.6 38.9 44.7 | |
| Screw L:D ratio | L/D | 23 21 18.4 | 22.8 21 19 | 23.6 21 18.9 | 23.3 21 19.1 | 22.9 21 19.4 | 22.8 21 19.5 | 22.6 21 19.6 |
| Injection pressure | Mpa | 211 176 135 | 214 182 149 | 220 173 141 | 207 168 139 | 204 171 146 | 206 175 151 | 190 164 143 |
| Screw speed | rpm | 195 | 200 | 190 | 170 | 130 | 170 | 170 |
| Plasticizing capacity(PS) | kg/hr | 34 44 62 | 41 60 68 | 58 80 108 | 78 103 142 | 96 121 153 | 154 186 233 | 186 281 331 |

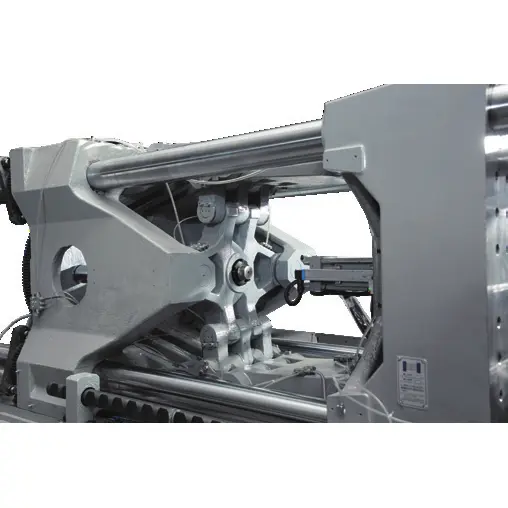

| CLAMPING UNIT | ||||||||
| Clamping force | KN | 900 | 1200 | 1600 | 2000 | 2600 | 3200 | 3800 |
| Max daylight | mm | 705 | 855 | 936 | 1010 | 1155 | 1250 | 1400 |
| Mould opening stroke | mm | 320 | 410 | 446 | 490 | 525 | 580 | 655 |

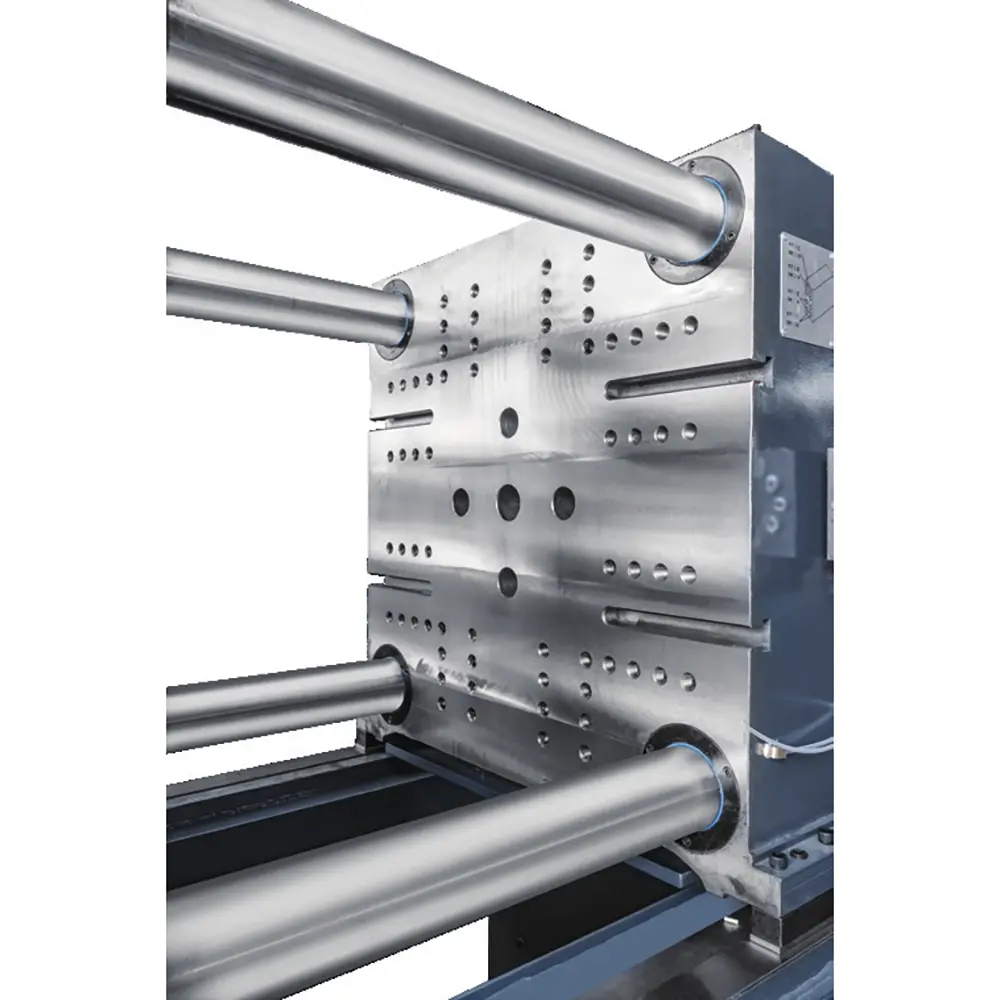

| Platen size | mm | 550 x 550 | 620 x 620 | 690 x 690 | 760 x 760 | 875 x 875 | 950 x 950 | 1060 x 1010 |
| Space between tie bar | 360 x 360 | 410 x 410 | 460 x 460 | 510 x 510 | 580 x 580 | 670 x 670 | 730 x 700 | |
| Mould thickness min/max | mm | 185～385 | 185～445 | 185～490 | 185～520 | 250～630 | 250～670 | 265～745 |
| Ejector force | KN | 31 | 42 | 42 | 49 | 67 | 77 | 111 |
| Ejector stroke | mm | 100 | 100 | 130 | 140 | 160 | 180 | 205 |
| Number of ejectors | unit | 4 + 1 | 4 + 1 | 4 + 1 | 4 + 1 | 12 + 1 | 12 + 1 | 12 + 1 |
| POWER/HEATING | ||||||||
| Pump motor | Kw | 11 | 11 | 15 | 18.5 | 22 | 30 | 37 |
| Hydraulic system pressure | MPA | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| No of temp control zones | unit | 3+1 | 3+1 | 4+1 | 4+1 | 5+1 | 5+1 | 5+1 |
| Heating capacity | Kw | 6 | 7 | 8.8 | 13 | 15.4 | 19.3 | 23.2 |
| Weight | ton | 3 | 4 | 5 | 6.5 | 9.2 | 13.5 | 16.3 |
| Oil tank capacity | L | 220 | 270 | 345 | 425 | 530 | 565 | 665 |
| Dimensions | MxMxM | 4.08×1.14×1.87 | 4.5×1.23×1.91 | 5.05×1.3×1.95 | 5.5×1.36×2 | 6.3×1.54×2.07 | 6.92×1.67×2.2 | 7.7×1.77×2.2 |
